19-Pin Stage Connector Series



 AJJ 19-pin Stage Connector Series

Professional Stage Connector — 100% Made in Taiwan

AJJ 19-pin stage connectors are designed for professional stage lighting, touring productions, theater, studio, and power distribution applications.

Compatible with Socapex “419” and Veam “VSC” connector systems.

6 Types Available

Panel Mount Connectors

AJJ-19-PF
19-Pin Panel Mount Female Connector

AJJ-19-PM
19-Pin Panel Mount Male Connector


Waterproof Cable Connectors

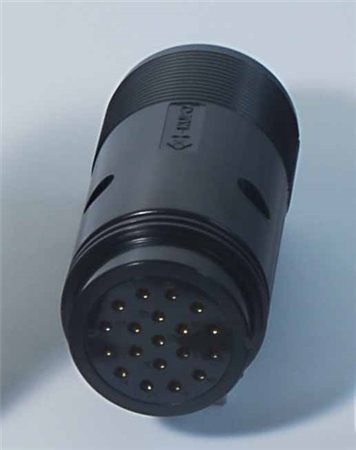

AJJ-19-CF-W
19-Pin Cable Female Connector — Waterproof Type

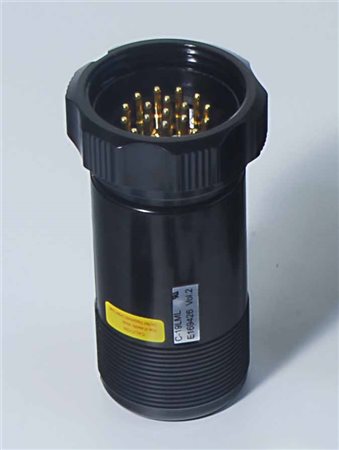

AJJ-19-CM-W
19-Pin Cable Male Connector — Waterproof Type

Designed with cable-entry sealing and strain relief for applications requiring additional environmental protection.


2 PCS Standard Cable Connectors

AJJ-19-CF-2P
19-Pin Cable Female Connector — 2 PCS Standard Type

AJJ-19-CM-2P
19-Pin Cable Male Connector — 2 PCS Standard Type

Traditional two-piece shell design. The connector can be soldered first and the two-piece shell assembled afterward, providing convenient cable assembly and maintenance.


Main Features

• Compatible with Socapex “419” and Veam “VSC” connector systems
• Rugged aluminum alloy construction
• Black non-conductive finish
• Hard gold-plated contacts
• More than 5,000 mating cycles
• Waterproof and 2 PCS Standard cable versions available
• 100% Made in Taiwan

Specifications

Rated Current / Voltage: AC 20A / 250V
Operating Limit Voltage: AC 400V
Insulation Resistance: 500 MΩ
Contact Resistance: <3m Ω
Withstand Voltage: 1,800 VAC / Min
Operating Temperature: -20°C to +85°C
Mating Durability: 5,000+ cycles

AJJ 19-pin stage connectors are manufactured in Taiwan for professional stage and entertainment applications.
